🛡️ Security Monitoring Lab (Wazuh + Cowrie Honeypot)

Overview

Designed and implemented a security monitoring lab to simulate attacker behavior and analyze how events are captured, processed, and detected within a SIEM.

The environment consists of a Cowrie SSH honeypot generating attacker activity and a Wazuh SIEM ingesting, analyzing, and generating alerts based on that activity through custom detection rules.

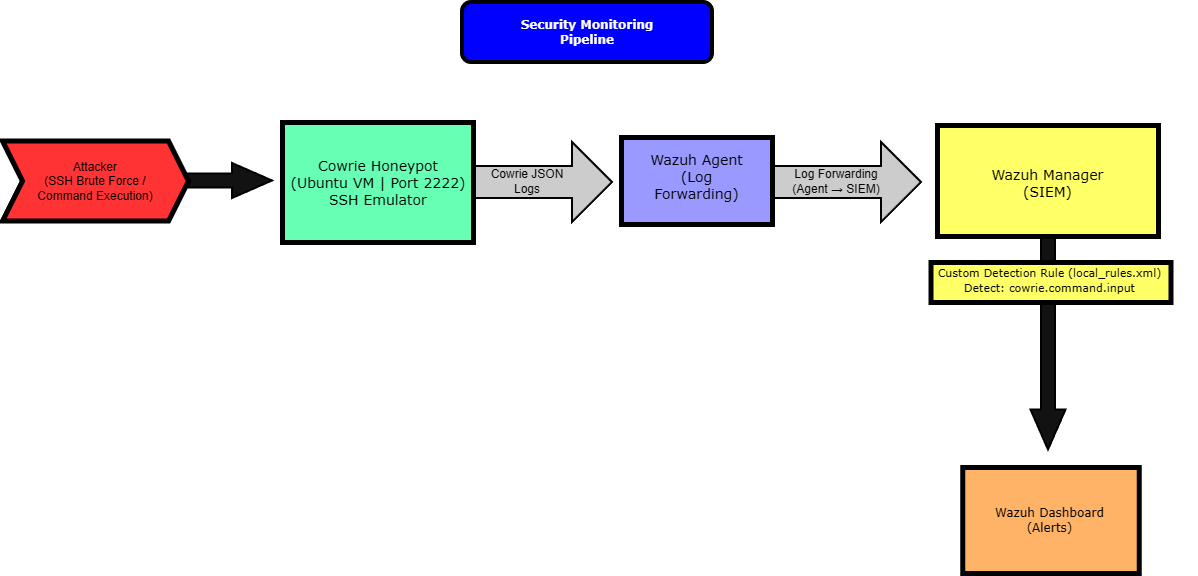

Lab Architecture

Lab Diagram

Key Components

Cowrie Honeypot (Ubuntu VM)

SSH Honeypot (Port 2222)
Captures attacker commands and session activity
Logs stored in JSON format (cowrie.json)
Simulates a vulnerable Linux system

Wazuh SIEM (Ubuntu VM)

Centralized log ingestion and analysis
Wazuh Agent for log forwarding
Event parsing and rule-based detection
Alert generation via Wazuh dashboard

Detection Pipeline

Attacker connects via SSH to honeypot
Cowrie logs activity in JSON format
Wazuh agent forwards logs to SIEM
Custom detection rules identify command execution
Alerts generated and visualized in dashboard

Detection Engineering

Created a custom Wazuh rule to detect command execution within the honeypot environment:

json ^cowrie\.command\.input$ Cowrie command executed: $(input)

Validation

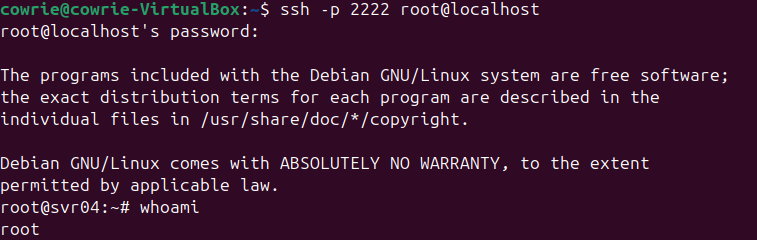

Attack Simulation

Simulated attacker activity by connecting to the honeypot via SSH and executing commands:

ssh -p 2222 root@localhost
whoami
exit

SSH Simulation

Log Ingestion Verification

Confirmed that Cowrie logs were successfully ingested and parsed by Wazuh.

Wazuh Events

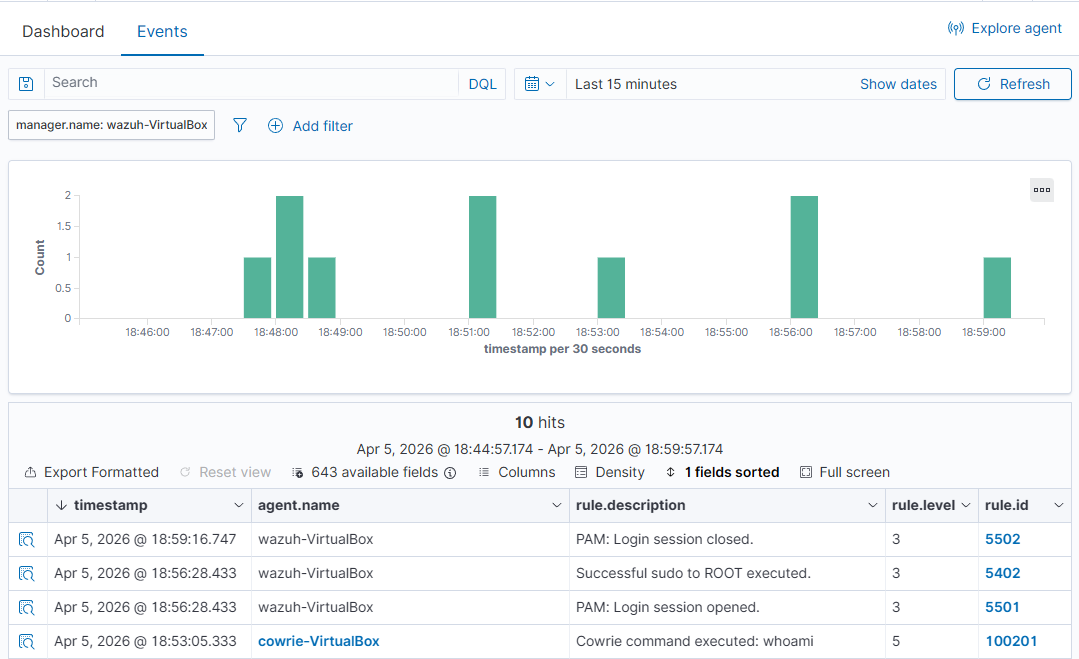

Alert Generation

Validated that custom detection rules triggered alerts based on attacker commands.

Detection Alert

Key Skills Demonstrated

SIEM Monitoring (Wazuh)
Log Ingestion & Analysis
Detection Rule Development
Security Event Investigation
Linux System Administration
Honeypot Deployment
Troubleshooting & Debugging

Summary

This project simulates a real-world security monitoring pipeline by integrating a honeypot with a SIEM to capture, analyze, and detect attacker behavior.

It demonstrates practical experience in log ingestion, detection engineering, and alert validation, reflecting core workflows performed by SOC analysts in identifying and responding to security events.
